Running Scripts to Automate SRM Recovery Plans using Powershell / PowerCli !

In my last post, I took a deep dive on how to run commands within the Recovery Plan, which would call out scripts on the recovered Virtual Machines. I would highly recommend that you read that article before reading this one. Here is the link – Using scripts to automate VMware Site Recovery Manager workflows & recovery steps!
Now is the time to take this one level up and see how SRM can integrate with other powerful tools such as PowerShell and PowerCLI to create a centralized script repository on the SRM server. This repository can contain scripts which can be executed by the PowerShell scripting engine with the help of PowerCLI installed on the SRM Server.
I think a better approach would be to go ahead and take a scenario which needs such kind of scripting and I will showcase step by step configuration which would help use solve the problem through scripting.


Situation:-

An organization is using vSphere Replication to replicate the virtual machines from Site A (Protected Site) to Site B (Recovery Site). They have the SRM automation engine to perform Recovery or Test.
There are a few virtual machines protected at Site A with an application which generates a lot of garbage logs. These garbage logs are a part of the OS and the VM , hence this data is also replicated to the DR site using vSphere Replication.
Since this data is not required at the recovery site, we are simply wasting the replication bandwidth to send these logs which could be in GB’s in some cases per virtual machine. The organization wants to efficiently use the Network between sites and want to remove any replication overheads which might not be required in the Recovery Site.

Solution:-

The solution to this issue is that we keep these logs on a separate log partition (which is on a different VMDK). vSphere Replication allows us to go to the granularity of choosing the VMDK’s which you want to replicate from a Virtual machine.
Let’s say the name of the VM which we want to replicate without the logs is called “vmsunny” which has 2 Virtual Disks.
Disk 1 – vmsunny.vmdk
Disk 2 – vmsunny_1.vmdk
The Disk 1 has the OS, Application and Data while the Disk 2 has the logs which are of no use in the DR site.
In this case, we will just replicate the Disk 2, once to create a copy on the DR site and then when we configure vSphere Replication for this VM, we would not replicate the Disk 2 to save the replication bandwidth from next time onwards.
Now we will use the SRM scripting capabilities to add the disk 2 on the DR virtual machine whenever we run a Test Recovery or a Disaster Recovery. We would need to script this task so that it happens automatically with the Recovery Workflow.

How to Implement

Here are the logical steps which I would follow in this case:-
a)      Replicate the ‘vmsunny’ vm from Site A to Site B, replicate both Disk 1 and Disk 2
b)      Once both the disks are created and the replication is complete, pause the replication, go the Site B datastore where Disk 1 and Disk 2 are located and move the Disk 2 out of the VM folder (This is to ensure that Disk 2 is preserved when you un-replicate the Disk 2 in next step).
c)      Now go back to vSphere Replication and configure replication for vmsunny once again. This time, DO NOT replicate Disk 2 i.e. vmsunny_1.vmdk. This will remove this disk from replicating from now on.
d)     Remove this disk from the Protection group as well by using the Detach option.
e)      Now go back to the location where you moved the Disk 2 in the DR site. Move the Disk 2 back to the VM folder from where you moved it in Step 2.
f)       Resume the replication which you paused in Step 2.
Now we would configure the Recovery Plan for ‘vmsunny’ VM and add a command to call a script from the SRM Server. This script would add the Disk 2 on the VM in the DR site as soon as the Test Recovery or Disaster Recovery option is selected for that recovery plan. This would be a pre-power on script which would add the disk and then the VM would power on.

Preparing the SRM server for running scripts & Creating the Recovery Plan

Before you could call scripts from the SRM server, you need to configure Powershell and PowerCLI on the SRM server. This would allow the SRM server to run powershell scripts using the VIX API and call the virtual center to add a disk to a virtual machine.

Please follow the steps in the following article written by Alan Renouf:-

Back to Basics: Part 1 – Installing PowerCLI

This will help you prepare your SRM Server for running PowerCli scripts which would call the following script kept on a folder in the SRM server:-
++++++++++++++++++START OF SCRIPT++++++++++++++++++
add-pssnapin VMware.VimAutomation.Core
Connect-VIServer -Server -WarningAction SilentlyContinue
New-HardDisk -VM “Virtual Machine Name” -Persistence IndependentPersistent -DiskPath “PATH TO  VMDK AT DR SITE
++++++++++++++++++END OF SCRIPT++++++++++++++++++
Sample Example:-
add-pssnapin VMware.VimAutomation.Core
Connect-VIServer -Server mylabvcenter.lab.com -WarningAction SilentlyContinue
New-HardDisk -VM “vmsunny” -Persistence IndependentPersistent -DiskPath “[EVA DISK1] vmsunny/vmsunny_1.vmdk”

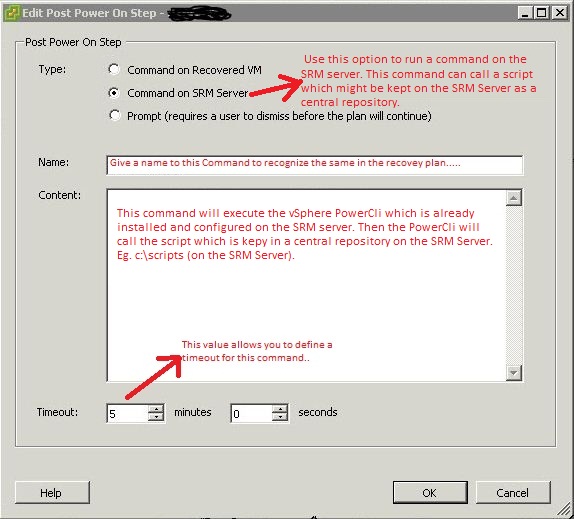

This script would be placed on a folder in the SRM Server, let’s say it is located on the SRM server on c:\scriptsfolder. In order to call this script we would add this to the SRM recovery plan as a pre-power on script as shown in the screenshot below:-

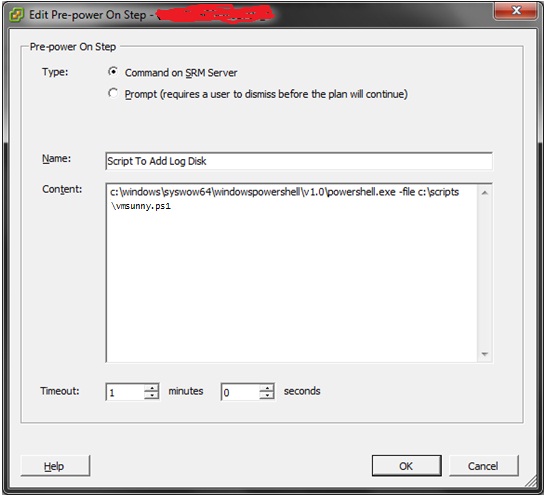

Let us assume that the script which we need to call is located on C:\scripts with the name as sunnyvm.ps1. We will call this script as shown in the screenshot below:-





Here we are calling the powershell application which is calling sunnyvm.ps1 located on the SRM server.

sunnyvm.ps1 contains the following script as stated before:-

add-pssnapin VMware.VimAutomation.Core
Connect-VIServer -Server mylabvcenter.lab.com -WarningAction SilentlyContinue
New-HardDisk -VM “vmsunny” -Persistence IndependentPersistent -DiskPath “[EVA DISK1] vmsunny/vmsunny_1.vmdk”

This would add vmsunny_1.vmdk to the sunnyvm and we then the vm will boot up. Now all the logging can be done on this disk when the VM is either recovered at the DR site or is powered on in a Test Recovery Mode.

Using this engine, you can do other powerful things in your SRM environment, such as Re-sizing vCPU or Memory allocations, add/remove disks or any  automation task which would make your recovery automatic and error free. Please feel free to share this article and your thoughts using the comment window.
